PDC Cutter

Home » Products » PDC Cutters

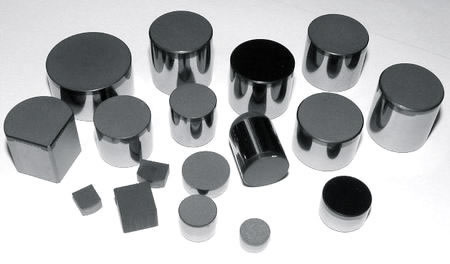

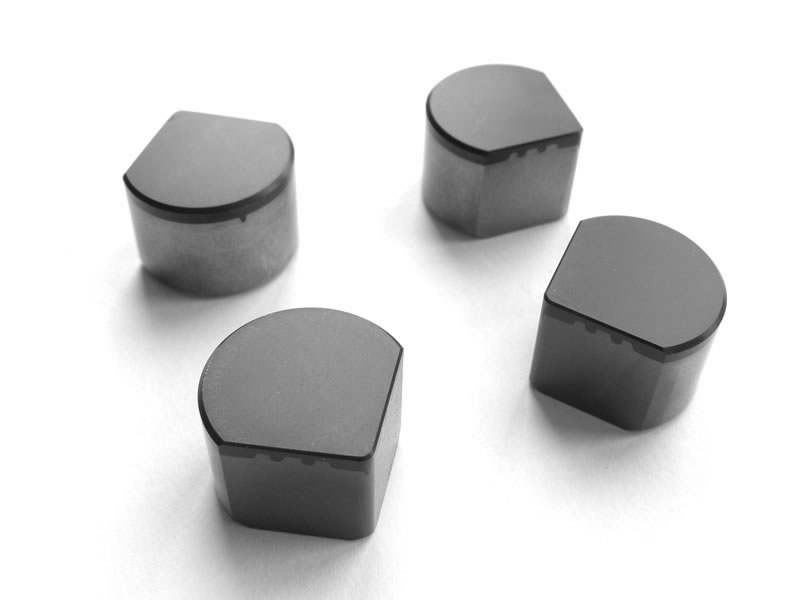

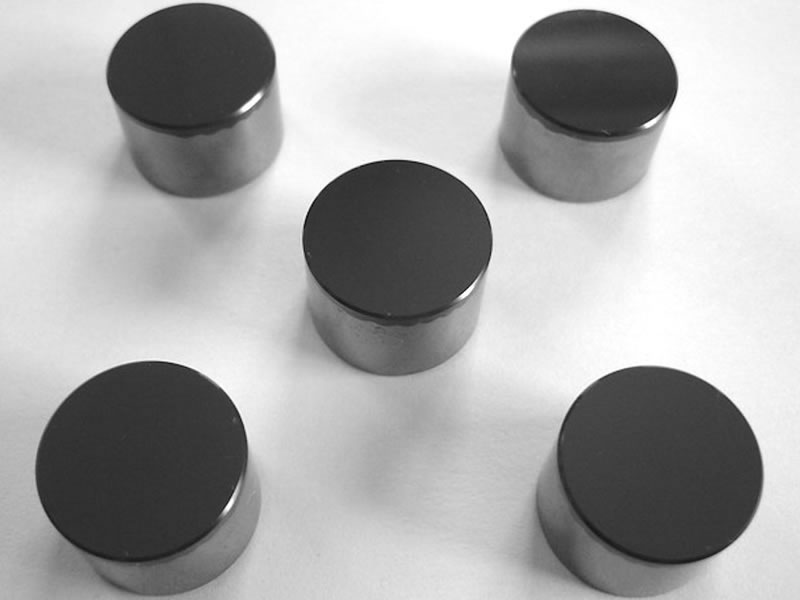

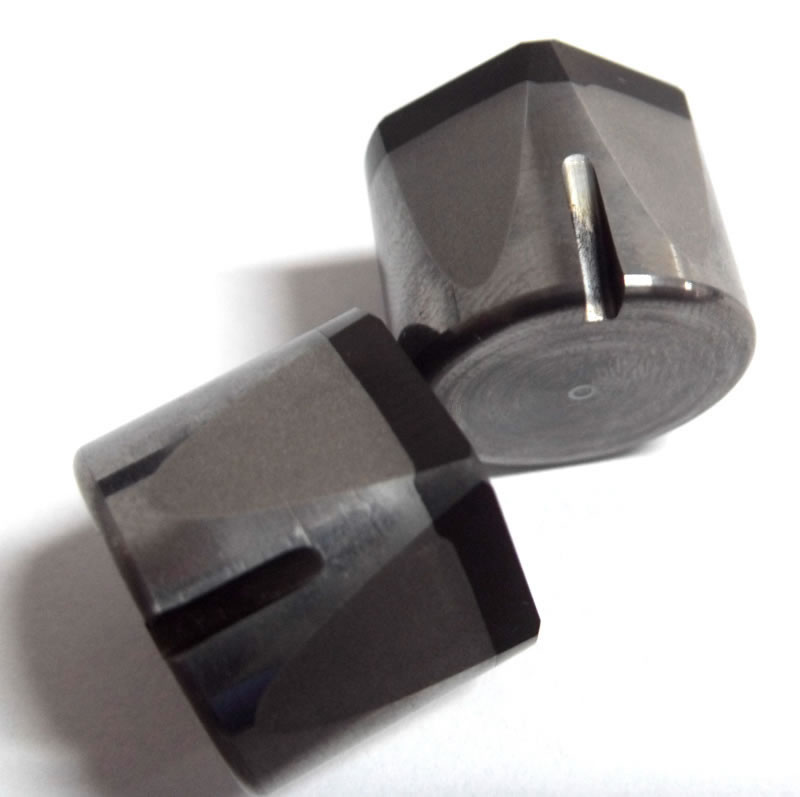

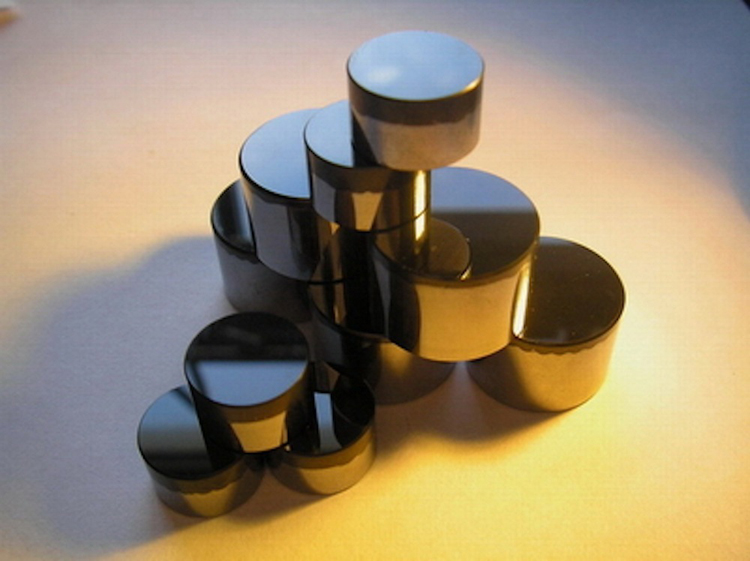

PDC Cutter

Features
1. The PDC cutter has high abrasive resistance. High quality materials are sintered to form the diamond layer which is of rigid framework structure. The PDC features compact structure and good abrasive resistance.
2. The PDC cutter features good impact resistance. The PDC uses tungsten carbide material which has good impact resistance and the diamond layer can guarantee the toughness of the impact resistance.
3. The PDC cutter has strong binding force. The junction plane of the diamond layer and the tungsten carbide layer uses a corrugated tooth design. The binding force can be increased and the bad impact of the plane residual stress on the PDC performance can be avoided.
4. The PDC cutter has good self sharpening performance. The good organization microstructure of the diamond makes the diamond particle remain sharp all times.
5. The PDC cutter features good thermal conductivity. Its highest bearing temperature can reach 700℃.

Application
The PDC cutter is used for drilling bits for oil, gas and coal.

Technical Specifications
Typical Parameters of PDC Cutter
Available Size Diameter(mm) Overall Thickness (mm) Thickness of PCD (mm) Chamfer of PCD (mm) Chamfer of Carbide (mm)
0808 8.2±0.03 8.0±0.1 2.0±0.02 0.31±0.08×45 0.31±0.08×45
1308 13.4±0.03 8.0±0.1
1313 13.4±0.03 13.2±0.1
1608 15.9±0.05 8.0±0.1
1613 15.9±0.05 13.2±0.1
1908 19.1±0.05 8.0±0.1
1913 19.1±0.05 13.2±0.1
1916 19.1±0.05 16.0±0.1
Note: Special type and size can be customized

Material
The PDC cutter uses diamond powder and tungsten carbide.

Packaging
The PDC cutter is packaged in a plastic case/carton.
