Laser Cutting and Drilling Processing Service

Home » Products » Processing Services » Laser Cutting and Drilling Processing Services
Laser Cutting and Drilling Processing Service

Description

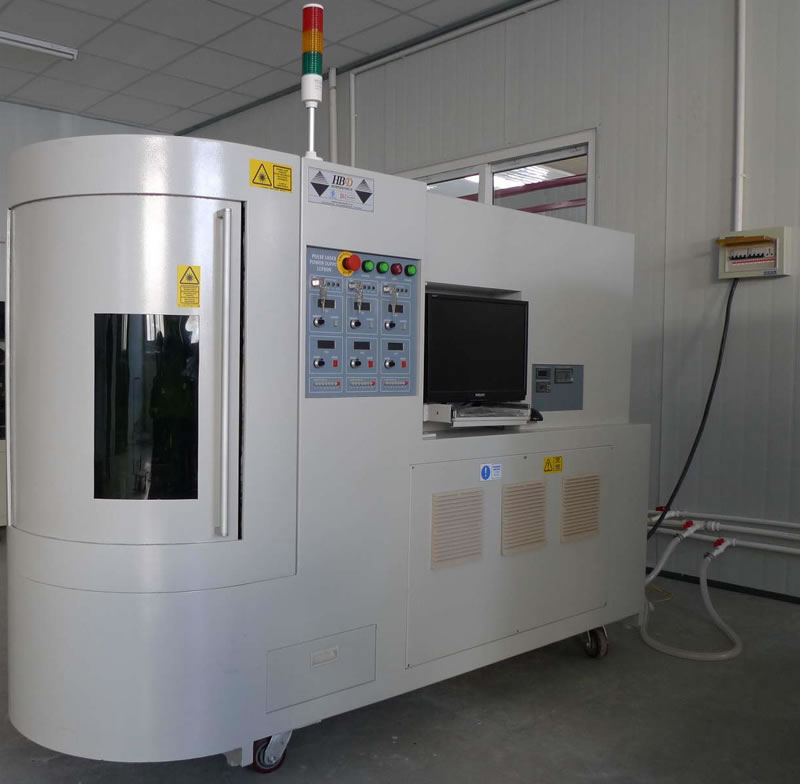

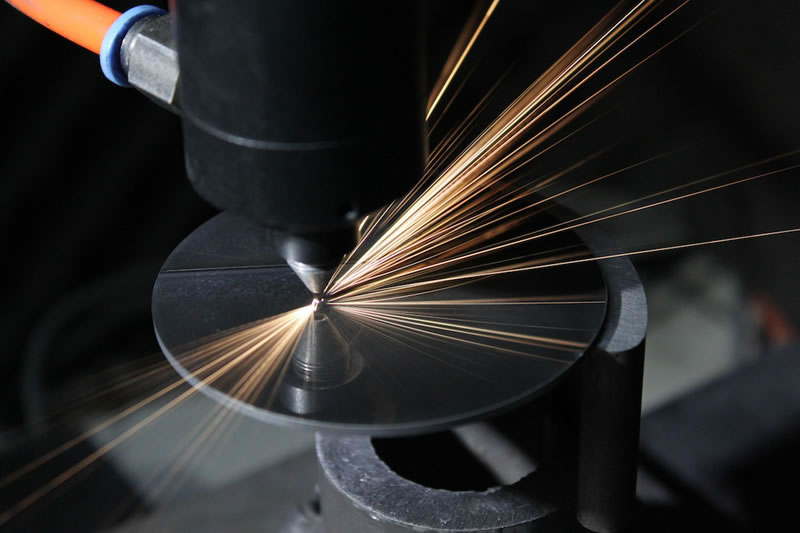

Beijing Worldia designs and manufactures a laser cutting machine for super hard material. We are the first to apply laser cutting technology to the cutting of PCD/PCBN blank, PDC and CVD diamond on large scale. Compared with traditional cutting technology, laser cutting technology has the advantages of better quality, faster speed, higher efficiency and lower cost.

Features
1. Laser cutting features high precision of positioning.
2. The width of the kerf is only 0.02mm to 0.15mm.
3. The laser cutting features a smooth cutting edge and flat cutting surface. You cannot spot any chips from the cut diamond even if the diamond is put under a 100 times microscope.
4. Laser cutting has the advantages of high cutting efficiency and fast cutting speed.

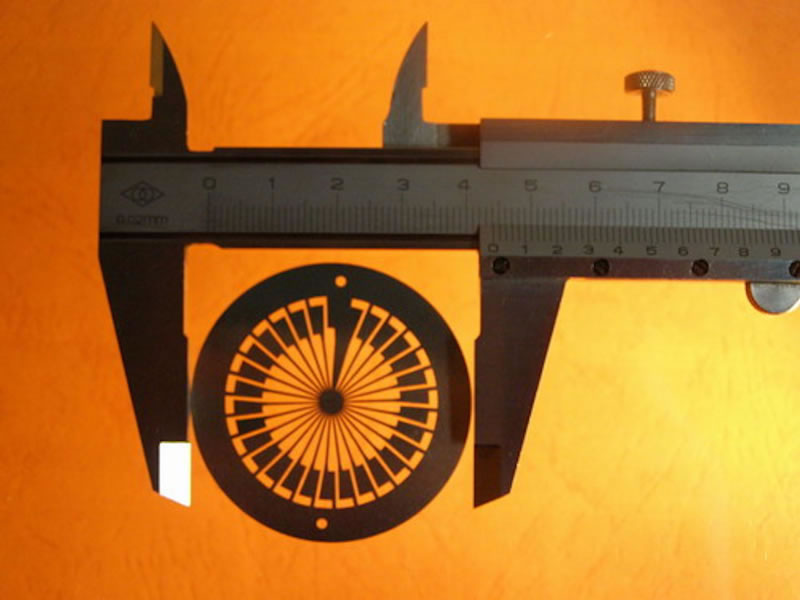

5. The laser can realize curve cutting.
6. The laser can be used to precisely cut the edge of the PCD/PCBN cutting tool. It can reduce stress damage to the cutting tools during processing and prolong the service life of the cutting tool.

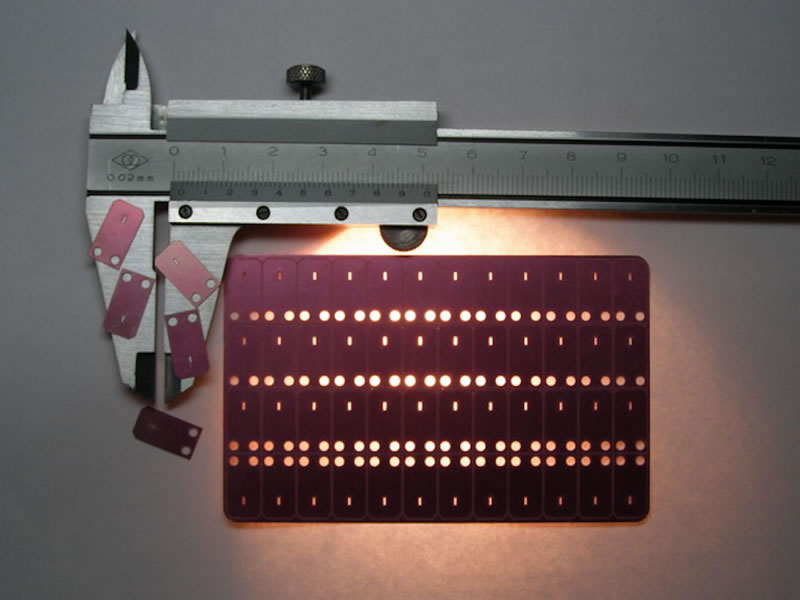

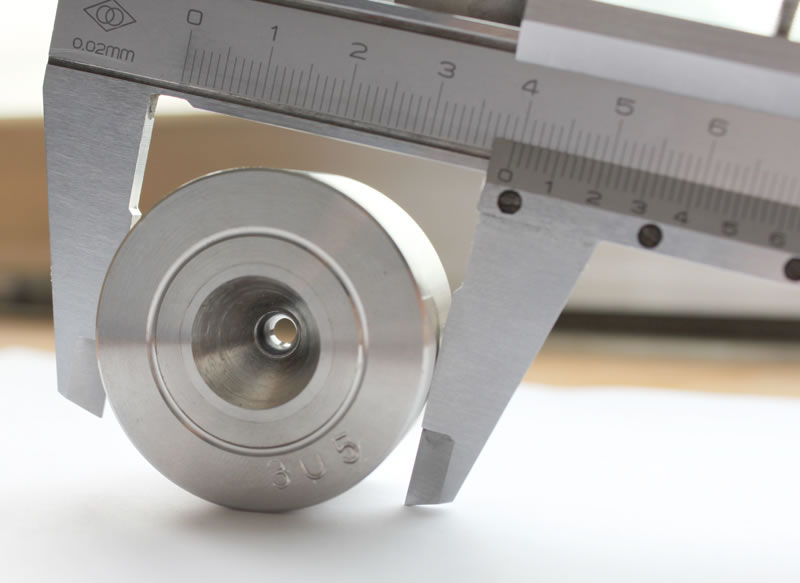

7. The laser cutting and drilling machine can realize laser micropore processing.
8. The service of cleaning the tool tips and chamfering can save customers a lot of preparation work before welding.

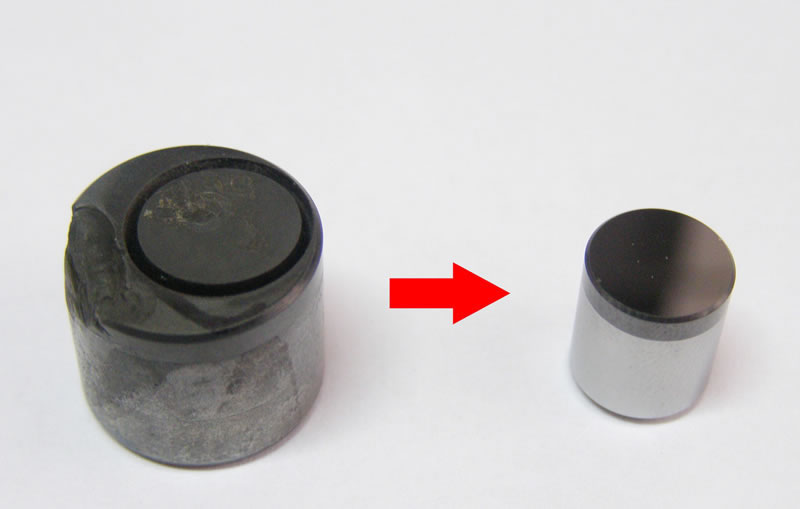

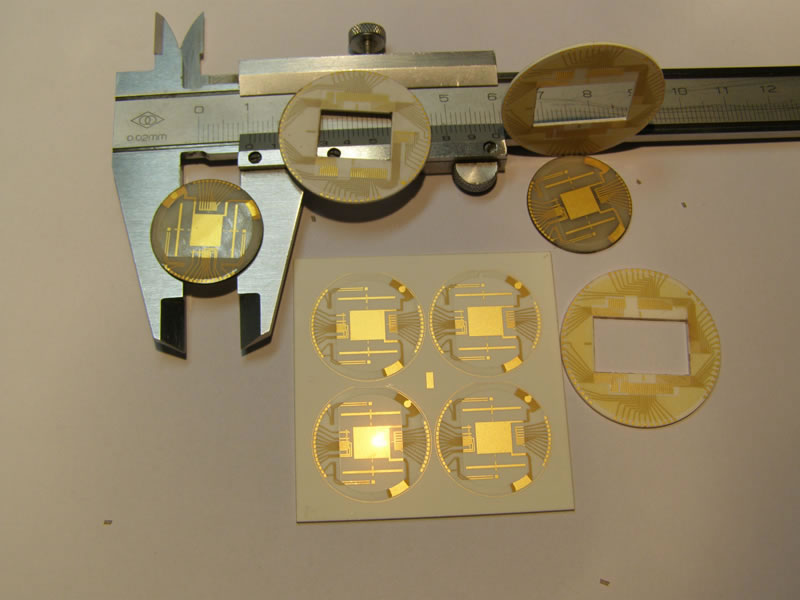

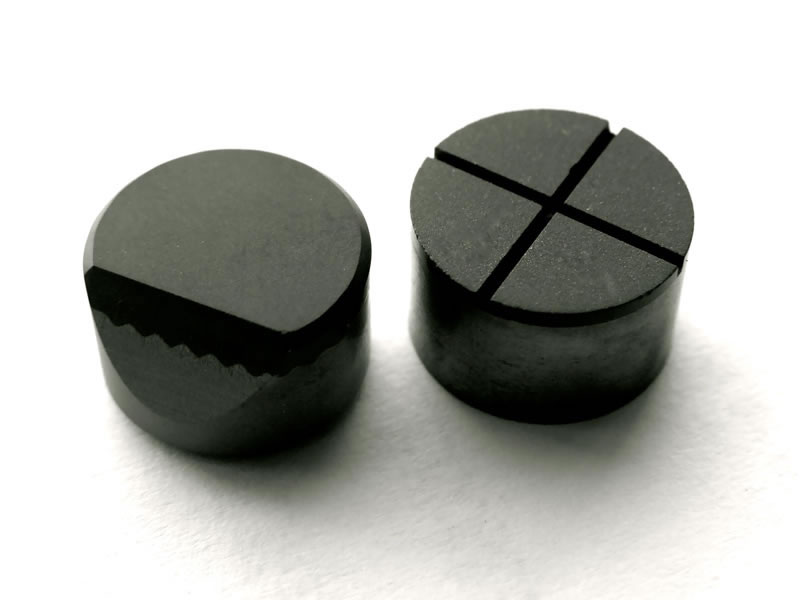

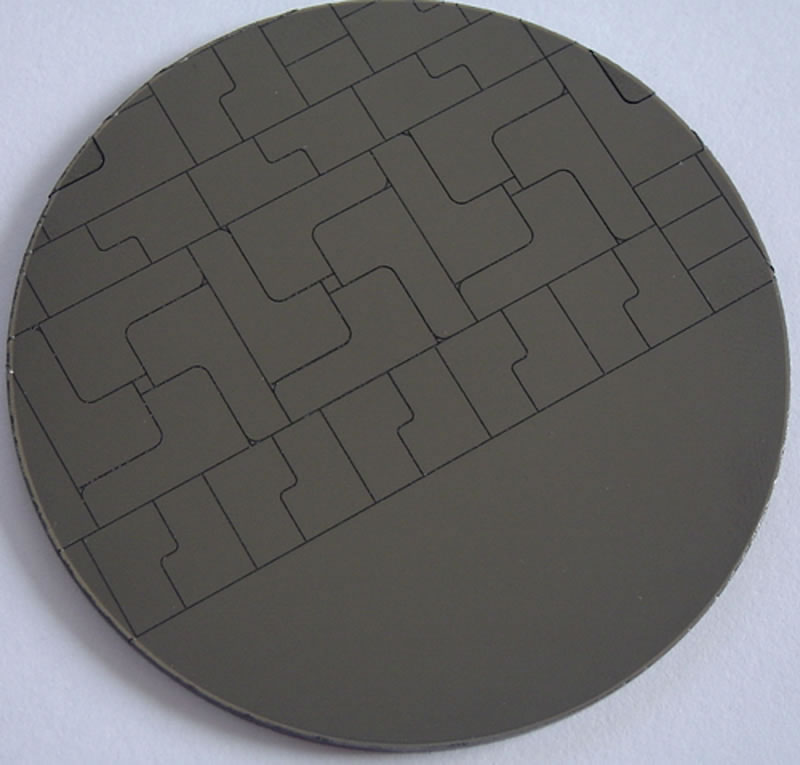

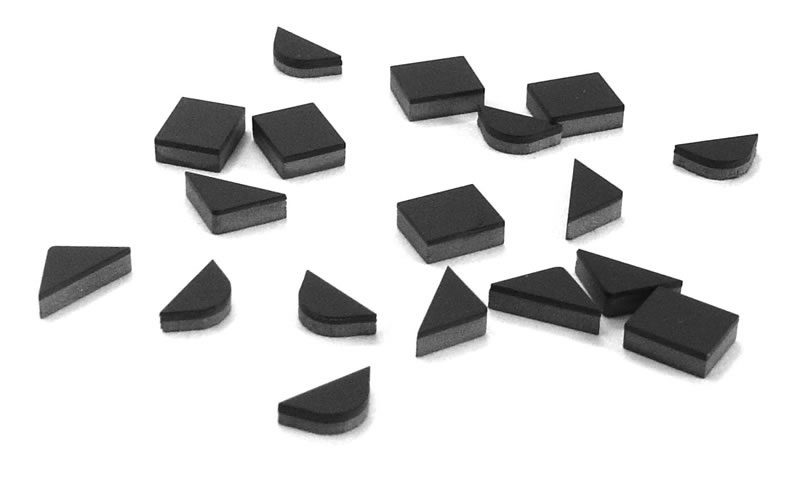

9. We can process 1000 pieces of ¢74/1.6t PCD blank. Our processing scope covers various super hard materials, including PCD/PCBN blanks, PDC, CVD diamond, tungsten carbide and ceramic.

Technical Specifications
Laser Cutting Machine Model Rated Input Power Kerf Width Single-side Cutting Thickness Performances
PDC PCBN Ceramics
LPNC11 40W 0.10-0.12 mm 3.5mm 4 mm 8 mm These models are manufactured with the latest technology. They are suitable for the highly efficient and accurate cutting of PCD, PCBN, CVD diamond, mono diamond, ceramics, tungsten carbide and steel sheets.
LPNC12 80W 0.12-0.15 mm 6 mm 7 mm 13 mm
LPNC13 120W 0.15-0.18 mm 8 mm 10 mm 16 mm
LCP30 30W 0.1-0.15 mm 2 mm 3 mm 4 mm They are the old models from Beijing Supower Company. Haobo no longer offers these systems due to continuous upgrading.
LCP40 40W 0.15-0.2 mm 3 mm 4 mm 6 mm
LCP80 80W 0.2-0.3 mm 5 mm 5 mm 8 mm
