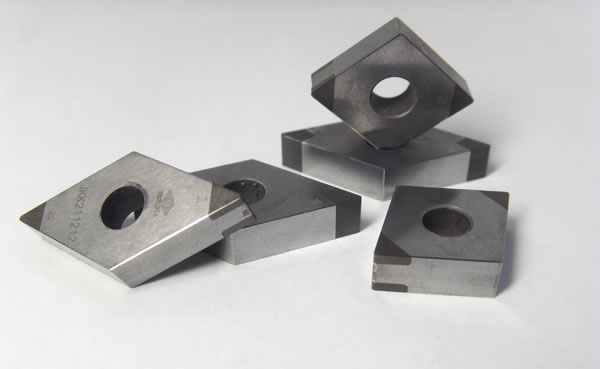

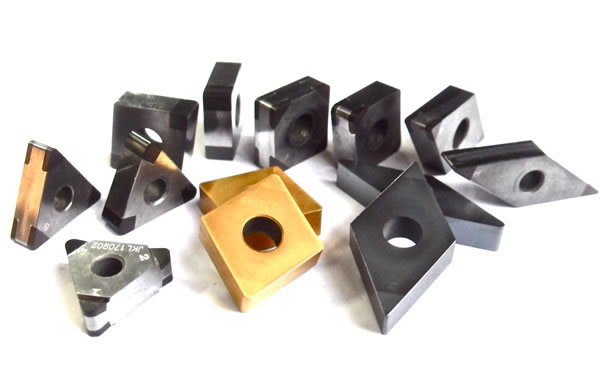

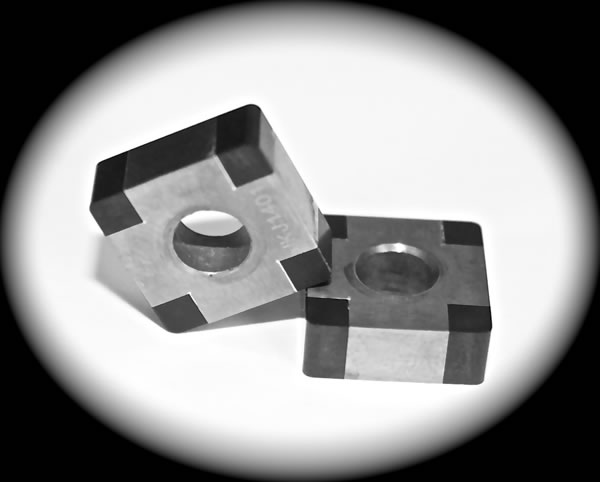

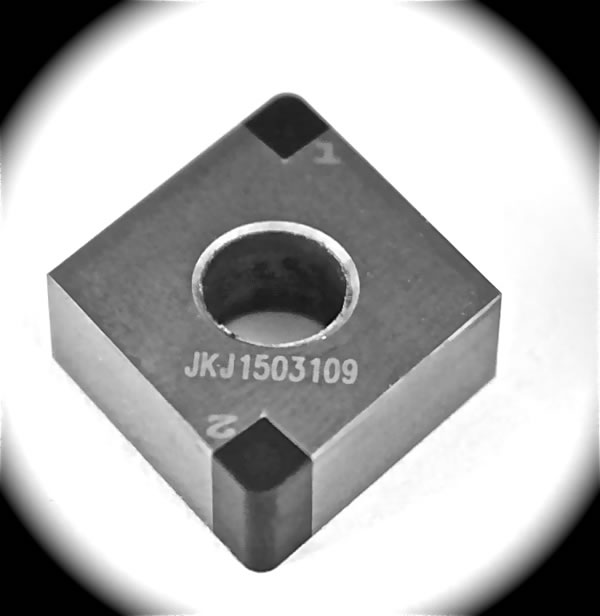

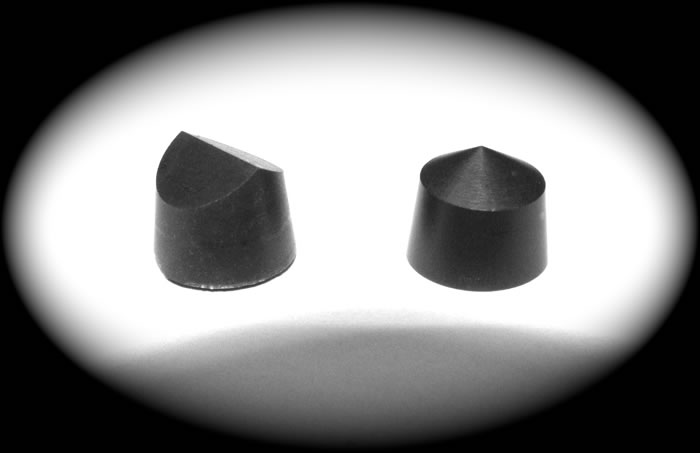

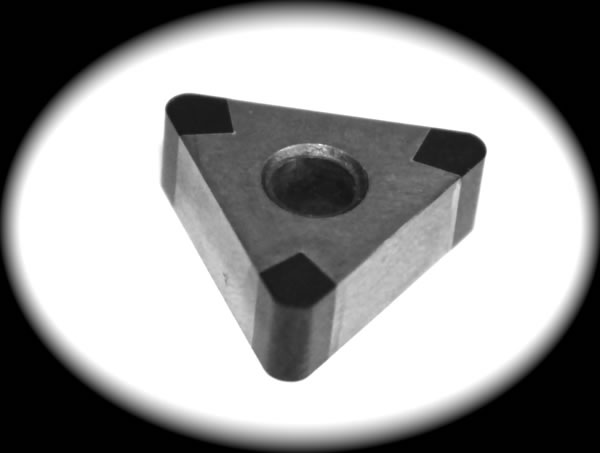

PCBN Insert

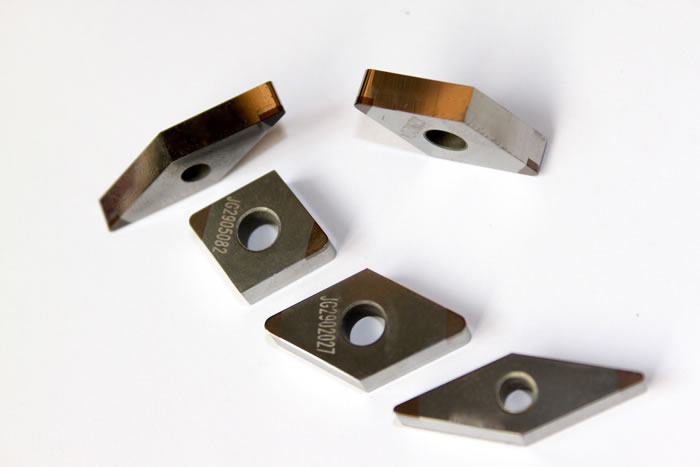

PCBN Insert

Features
1. The PCBN insert meets the international standard of ISO.
2. The PCBN insert has the advantages of high abrasive resistance, high processing precision, good thermal conductivity and long service life.
3. The PCBN insert can realize high speed cutting and hard material cutting with high work efficiency.
4. The PCBN insert can facilitate fast clamping.
5. The PCBN insert can be used repeatedly so it can lower your processing cost.

Application

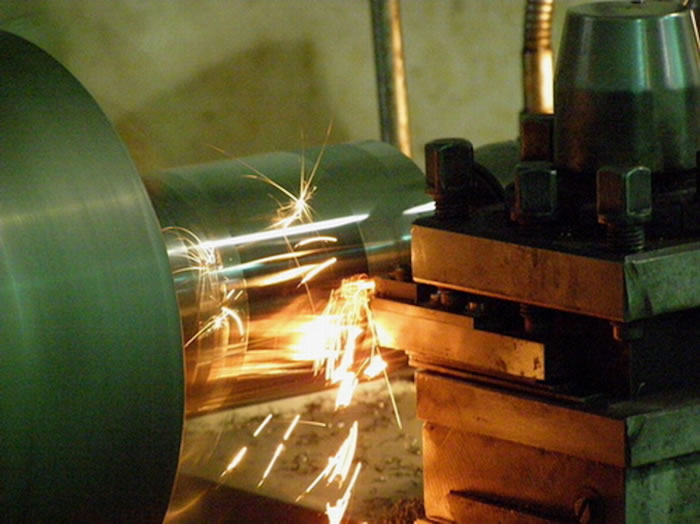

The PCBN insert is used to process hardened steel, hardened cast iron, grey cast iron and iron series metal work pieces.

Technical Specifications
Model Dimension (mm)
L C s d R
VNGA160404 16.6 9.525 4.76 3.81 0.4
VNGA160408 16.6 9.525 4.76 3.81 0.8
VNGA160412 16.6 9.525 4.76 3.81 1.2
VBGW160404 16.6 9.525 4.76 4.4 0.4
VBGW160408 16.6 9.525 4.76 4.4 0.8
DCGW11T302 11.6 9.525 3.97 4.4 0.2
DCGW11T304 11.6 9.525 3.97 4.4 0.4
DCGW11T308 11.6 9.525 3.97 4.4 0.8
DNGA150404 15.5 12.7 4.76 5.16 0.4
DNGA150408 15.5 12.7 4.76 5.16 0.8
DNGA150412 15.5 12.7 4.76 5.16 1.2
DNGN150404 15.5 12.7 4.76 0.4
DNGN150408 15.5 12.7 6.35 0.8
DNGN150412 15.5 12.7 6.35 1.2
TNGA160402 16.5 9.525 4.76 3.81 0.2
TNGA160404 16.5 9.525 4.76 3.81 0.4
TNGA160408 16.5 9.525 4.76 3.81 0.8
TNGA160412 16.5 9.525 4.76 3.81 1.2
TCGW090202 9.6 5.56 2.38 2.5 0.2
TCGW090204 9.6 5.56 2.38 2.5 0.4
TCGW090208 9.6 5.56 2.38 2.5 0.8
TCGW110204 11.0 6.35 2.38 2.8 0.4
TCGW110208 11.0 6.35 2.38 2.8 0.8
TCGW16T304 16.5 9.525 3.97 4.3 0.4
TCGW16T308 16.5 9.525 3.97 4.3 0.8
TPGB090204 9.6 5.56 2.38 2.5 0.4
TPGB090208 9.6 5.56 2.38 2.5 0.8
TNGN110302 11.0 6.35 3.18 0.2
TNGN110304 11.0 6.35 3.18 0.4
TNGN110308 11.0 6.35 3.18 0.8
TPGN110302 11.0 6.35 3.18 0.2
TPGN110304 11.0 6.35 3.18 0.4
TPGN110308 11.0 6.35 3.18 0.8
CNMA120404 12.9 12.7 4.76 5.16 0.4
CNMA120408 12.9 12.7 4.76 5.16 0.8
CNMA120412 12.9 12.7 4.76 5.16 1.2
CNMA120416 12.9 12.7 4.76 5.16 1.6
CCGW060202 6.4 6.35 2.38 2.8 0.2
CCGW060204 6.4 6.35 2.38 2.8 0.4
CCGW060208 6.4 6.35 2.38 2.8 0.8
CCGW080202 8.0 7.94 2.38 3.4 0.2
CCGW080204 8.0 7.94 2.38 3.4 0.4
CCGW080208 8.0 7.94 2.38 3.4 0.8
Model Dimension (mm)
L C s d R
TNGA160402 16.5 9.525 4.76 3.81 0.2
TNGA160404 16.5 9.525 4.76 3.81 0.4
TNGA160408 16.5 9.525 4.76 3.81 0.8
TNGA160412 16.5 9.525 4.76 3.81 1.2
TCGB090204 9.6 9.56 2.38 2.5 0.4
TCGB090208 9.6 9.56 2.38 2.5 0.8
SNGA09T302 9.525 9.525 3.97 4.4 0.2
SNGA09T304 9.525 9.525 3.97 4.4 0.4
SNGA090316 9.525 9.525 3.18 3.81 1.6
SNGA060202 6.35 6.35 2.38 2.8 0.2
SNGA060204 6.35 6.35 2.38 2.8 0.4
SNGA060208 6.35 6.35 2.38 2.8 0.8
SCGW090304 15.5 12.7 4.76 5.16 0.4
SCGW090308 15.5 12.7 4.76 5.16 0.8
SCGW090316 15.5 12.7 4.76 5.16 1.6
SCGW120404 12.7 12.7 4.76 5.5 0.4
SCGW120408 12.7 12.7 4.76 5.5 0.8
SCGW120412 12.7 12.7 4.76 5.5 1.2
SPGN090304 9.525 9.525 3.18 0.4
SPGN090308 9.525 9.525 3.18 0.8
SPGN090312 9.525 9.525 3.18 1.2
SNGN150408 15.5 12.7 4.76 5.16 0.8
SNGN150412 15.5 12.7 4.76 5.16 0.8
SNGN190412 15.5 12.7 4.76 5.16 1.2
SPGN090308 9.525 9.525 3.18 0.8
SPGN120408 12.7 12.7 4.76 0.8
SPGN120412 12.7 12.7 4.76 1.2
SPGN150404 15.875 15.875 4.76 0.8
SPGN150412 15.875 15.875 4.76 1.2
HEEN090408 15.92 4.76 0.8

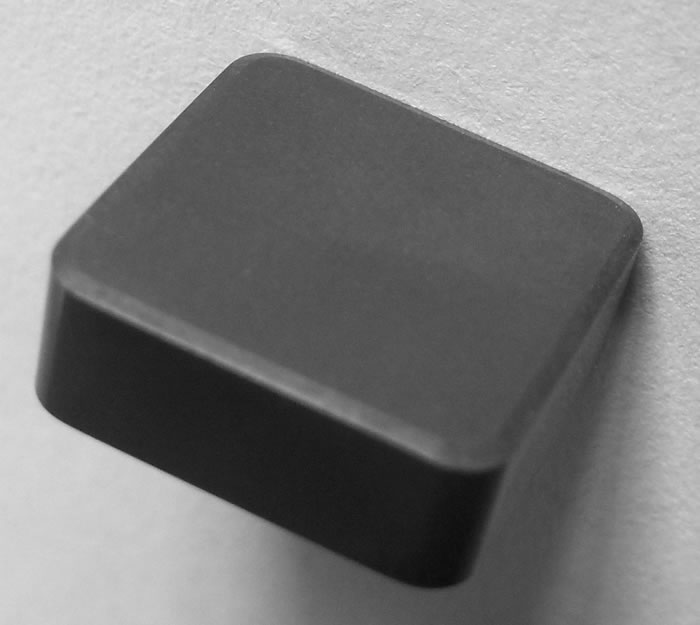

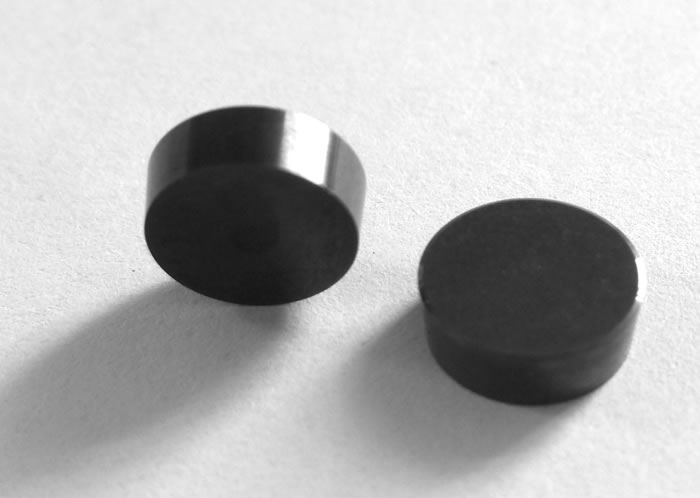

Specification of Solid PCBN Insert

Model Dimension (mm)
ISO ΦD S
RNMA251000 25.4 10
RNMA201000 20 10
RNMA200700 20 7.94
RNMA150700 15.875 7.94
RNMA12T600 12.7 6.80
RNMA120400 12.7 4.76
RNMA090400 9.525 4.76
RNMA080400 8.5 4.76
Model Dimension (mm)
ISO ΦD S r
RCMN12T600 12.7 6.8 0
RCMN150700 15.875 7.94 0
RCMN190700 19.05 7.94 0

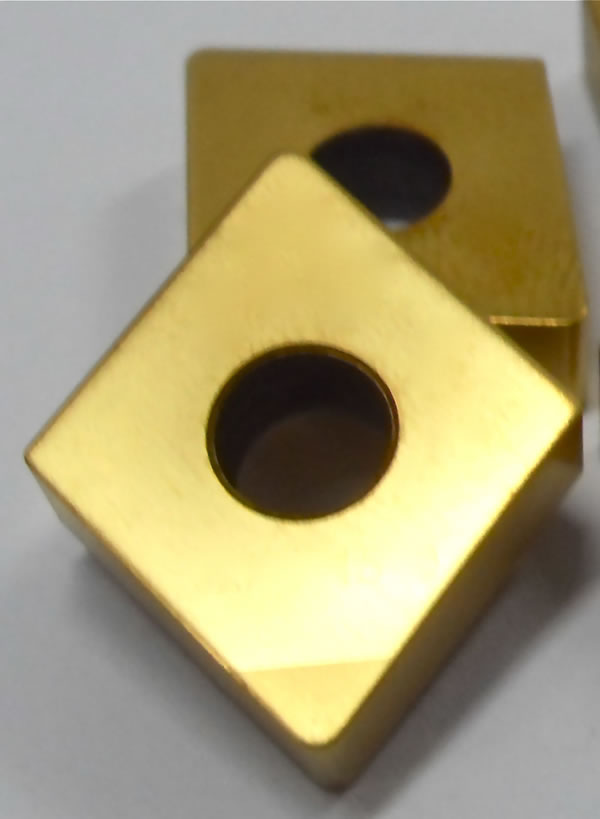

Model Dimension (mm)
ISO L ΦD S R
SNMN120408 12.7 12.7 4.76 0.8
SNMN12T612 12.7 12.7 6.8 1.2
SNMN150720 15.875 15.875 7.94 2.0
SNMN201020 20 20 10 2.0

Material
The tool bit uses PCBN blanks manufactured by world famous companies including Element Six (DeBeers, E6), DI (GE), ILJIN, SMITH, SUMITOMO and TOMEI. The body part uses high quality tungsten carbide.

Feedback Form
Other Products
  • PCD Milling ToolsPCD blanks feature high hardness, high abrasive resistance, high thermal conductivity and strong toughness. The PCD milling tool has advantages over ...
  • PCD Reamers The PCD reamer can realize high speed cutting and hard material cutting.
    With the features of high abrasive resistance and thermal conductivity, PCD ...
  • Diamond DrillsAs PCD blanks feature high hardness, high abrasive resistance, high thermal conductivity and strong toughness, the diamond drill has advantages over the ...
