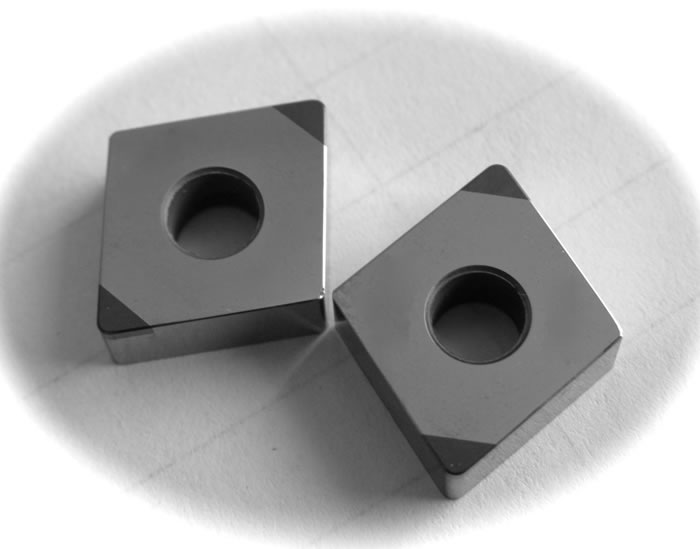

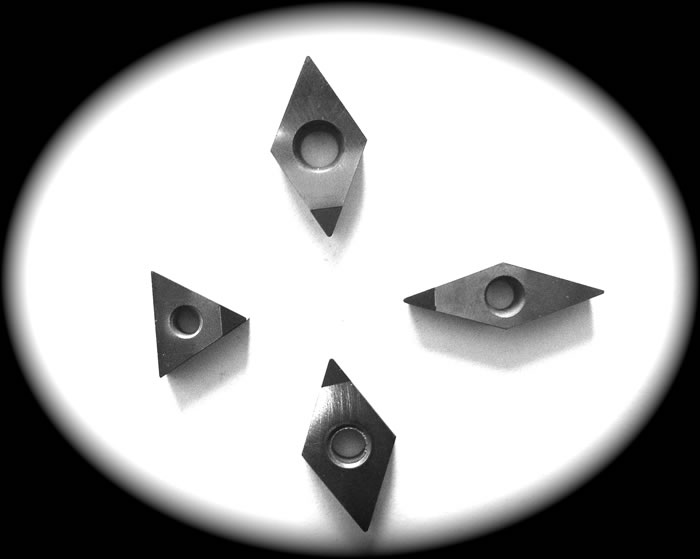

PCD Insert

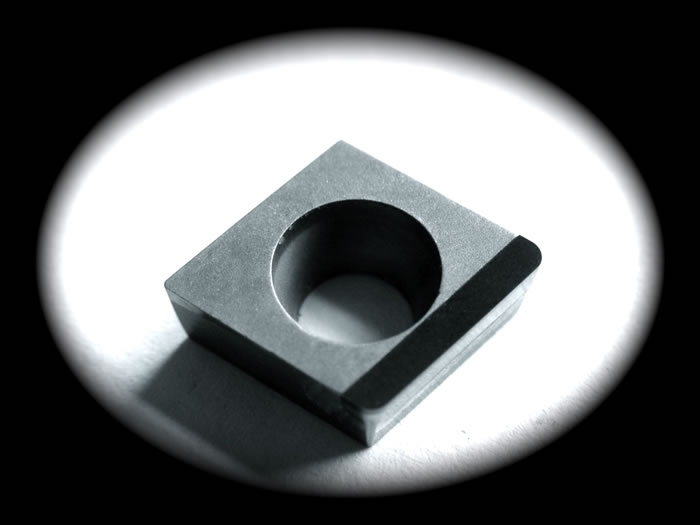

PCD Insert

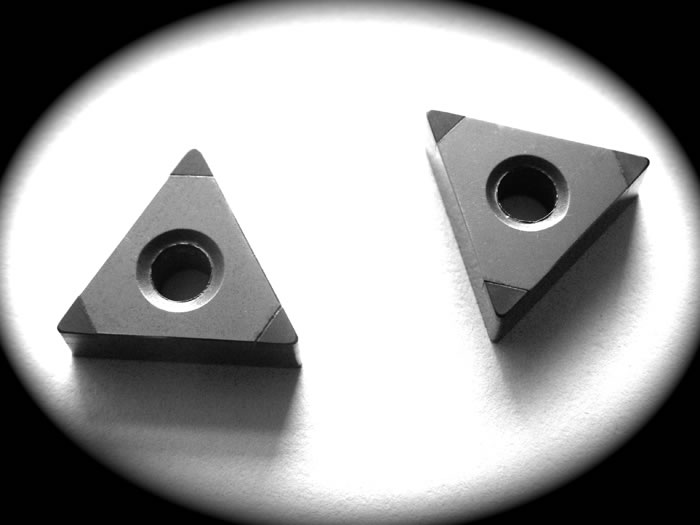

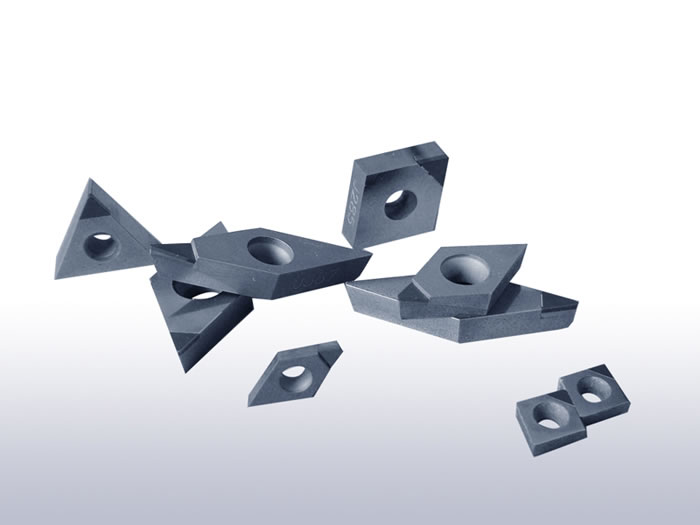

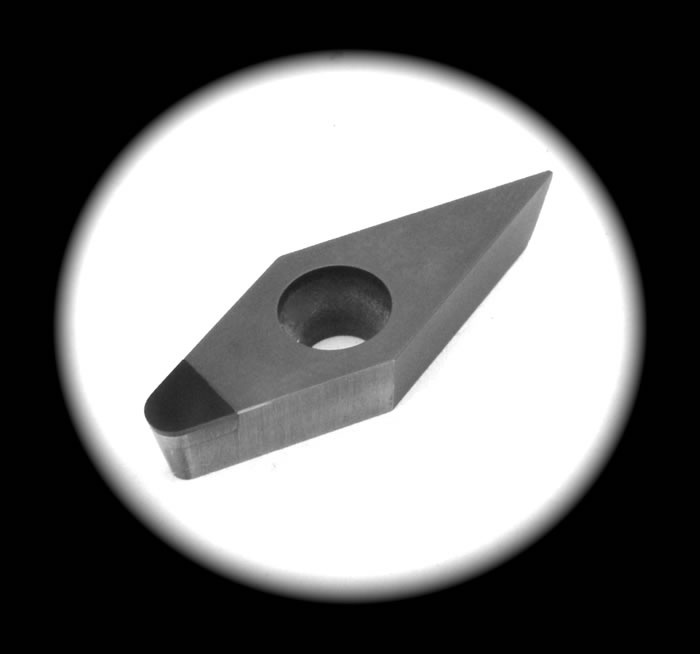

Features
1. The PCD insert meets the international standard of ISO.
2. The PCD insert has the advantages of high abrasive resistance, high processing precision, good thermal conductivity and long service life.
3. The cutting edge is sharp.
4. The PCD insert can realize high speed cutting and hard material cutting with high work efficiency.
5. The PCD insert can facilitate fast clamping.
6. The PCD insert can be used repeatedly, which helps to lower your processing cost.

Application

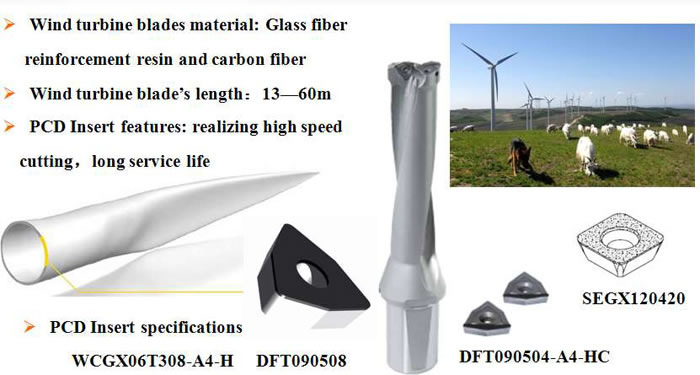

The PCD insert can be used in many fields including aviation, the car industry, energy equipment, and the wood and stone industry. It can be used to cut and process different materials such as nonferrous metal, tungsten carbide, ceramic, nonmetal and composite material.

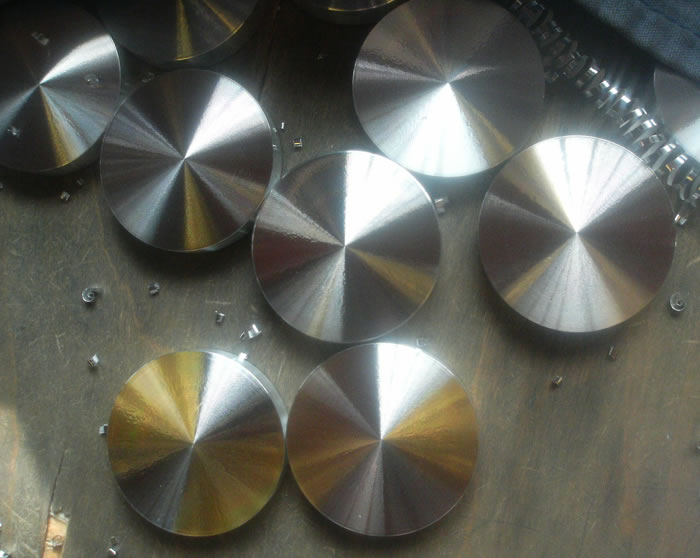

Materials to be Processed Products

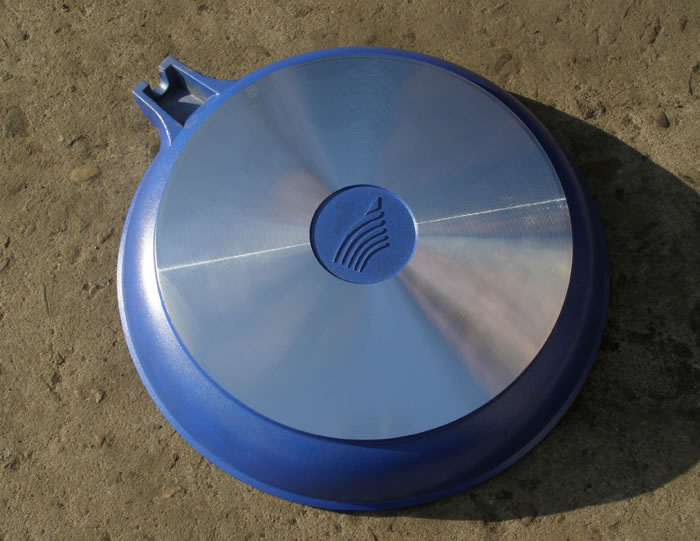

Nonferrous Metal Aluminum, Aluminum Alloy Piston, cylinder, wheel hub, transmission case, pump body, admission pipe and various shell parts for cars and motorcycles.
Tank body, shell and compressor parts for airplanes and electro mechanical products.
Precision machinery parts for cameras, duplicators and metrical instruments.
Parts for pump body and oil press.

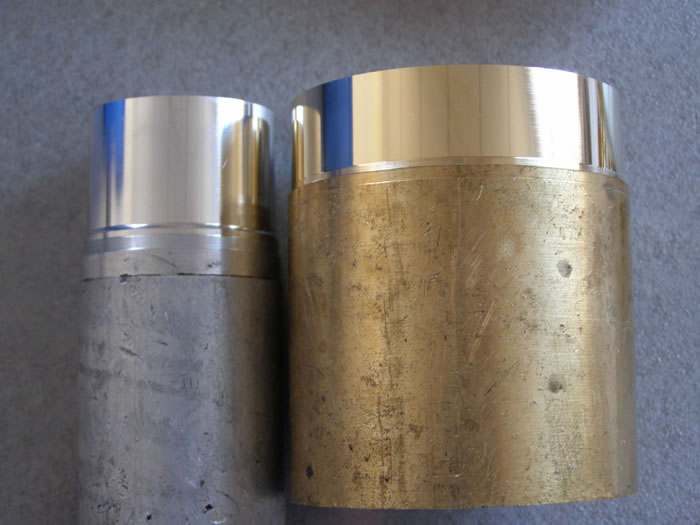

Copper, Copper Alloy Axle, bearing bush, bearing and pump body for internal combustion engines and ships.
Parts for various instruments, dynamo commutators, printed boards and electronic apparatus.
Bearing, bearing bush, valve and shell body.
Tungsten Carbide Sinter such as valve seat and cylinder, and semi-finished sinter.
Others Various nonferrous metal parts such as magnesium and zinc.
Nonmetal Wood Hardwood, artificial board, artificial abrasion resistant fiberboard.
Reinforced Plastic Glass fiber and carbon fiber reinforced plastic.
Rubber Roller for paper and rubber ring.
Graphite Carbon rod.
Ceramic Sinter such as sealing ring and plunger piston, and semi-finished sinter.
Technical Specifications
Model Dimension (mm)
L C s d R
VCMT110302 11.1 6.35 3.18 2.8 0.2
VCMT110304 11.1 6.35 3.18 2.8 0.4
VCMT110308 11.1 6.35 3.18 2.8 0.8
VCMT160404 16.6 9.525 4.76 4.4 0.4
VCMT160408 16.6 9.525 4.76 4.4 0.8
VCMT160412 16.6 9.525 4.76 4.4 1.2
VNMA160402 16.6 9.525 4.76 3.81 0.2
VNMA160404 16.6 9.525 4.76 3.81 0.4
VNMA160408 16.6 9.525 4.76 3.81 0.8
VNMA160412 16.6 9.525 4.76 3.81 1.2
DCMT070202 7.7 6.35 2.38 2.8 0.2
DCMT070204 7.7 6.35 2.38 2.8 0.4
DCMT070208 7.7 6.35 2.38 2.8 0.8
DCMT11T302 11.6 9.525 3.97 4.4 0.2
DCMT11T304 11.6 9.525 3.97 4.4 0.4
DCMT11T308 11.6 9.525 3.97 4.4 0.8
DNMA150404 15.5 12.7 4.76 5.16 0.2
DNMA150408 15.5 12.7 4.76 5.16 0.8
DNMA150412 15.5 12.7 4.76 5.16 1.2
TNMA160404 16.5 9.525 4.76 3.81 0.4
TNMA160408 16.5 9.525 4.76 3.81 0.8
TNMA160412 16.5 9.525 4.76 3.81 1.2
CNMA120404 12.9 12.7 4.76 5.16 0.4
CNMA120408 12.9 12.7 4.76 5.16 0.8
CNMA120412 12.9 12.7 4.76 5.16 1.2
CCMT060202 6.4 6.35 2.38 2.8 0.2
CCMT060204 6.4 6.35 2.38 2.8 0.4
CCMT060208 6.4 6.35 2.38 2.8 0.8
CCMT09T302 9.7 9.525 3.97 4.4 0.2
CCMT09T304 9.7 9.525 3.97 4.4 0.4
CCMT09T308 9.7 9.525 3.97 4.4 0.8
WNMA080404 8.7 12.7 4.76 5.16 0.4
WNMA080408 8.7 12.7 4.76 5.16 0.8
WNMA080412 8.7 12.7 4.76 5.16 1.2
Model Dimension (mm)
L C s d R
SNMA060202 6.35 6.35 2.38 2.8 0.2
SNMA060204 6.35 6.35 2.38 2.8 0.4
SNMA060208 6.35 6.35 2.38 2.8 0.8
SNMA070202 7.94 7.94 2.38 3.4 0.2
SNMA070204 7.94 7.94 2.38 3.4 0.4
SNMA070208 7.94 7.94 2.38 3.4 0.8
SNMA09T302 9.525 9.525 3.97 4.4 0.2
SNMA09T304 9.525 9.525 3.97 4.4 0.4
SNMA09T308 9.525 9.525 3.97 4.4 0.8
SNMA060204 6.35 6.35 2.38 2.8 0.4
SNMA070202 7.94 7.94 2.38 3.4 0.2
SNMA09T301 9.525 9.525 3.97 4.4 0.1
SNMA09T302 9.525 9.525 3.97 4.4 0.2
SNMA09T304 9.525 9.525 3.97 4.4 0.4
SPGN090302 9.525 9.525 3.18 0.2
SPGN090304 9.525 9.525 3.18 0.4
SPGN090308 9.525 9.525 3.18 0.8
SPGN120304 12.7 12.7 3.18 0.4
SPGN120308 12.7 12.7 3.18 0.8
SPGN120312 12.7 12.7 3.18 1.2
SNGN090302 9.525 9.525 3.18 0.2
SNGN090304 9.525 9.525 3.18 0.4
SNGN090308 9.525 9.525 3.18 0.8
SNGN120304 12.7 12.7 3.18 0.4
SNGN120308 12.7 12.7 3.18 0.8
SNGN120312 12.7 12.7 3.18 1.2

Material

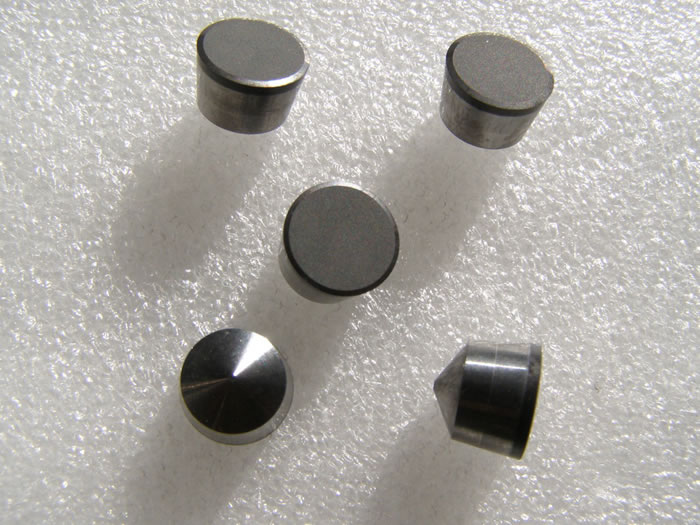

The tool bit uses PCD blanks manufactured by world famous companies including Element Six (DeBeers, E6), DI (GE), ILJIN, SMITH, SUMITOMO and TOMEI. The body part uses high quality tungsten carbide.

Feedback Form
Other Products
  • PCD Milling ToolsPCD blanks feature high hardness, high abrasive resistance, high thermal conductivity and strong toughness. The PCD milling tool has advantages over ...
  • PCD Reamers The PCD reamer can realize high speed cutting and hard material cutting.
    With the features of high abrasive resistance and thermal conductivity, PCD ...
