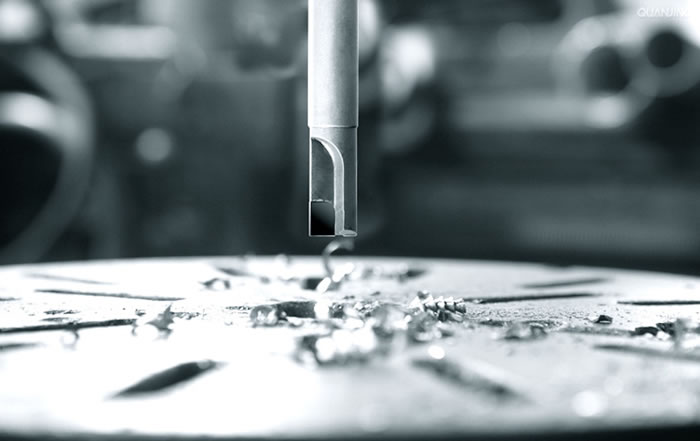

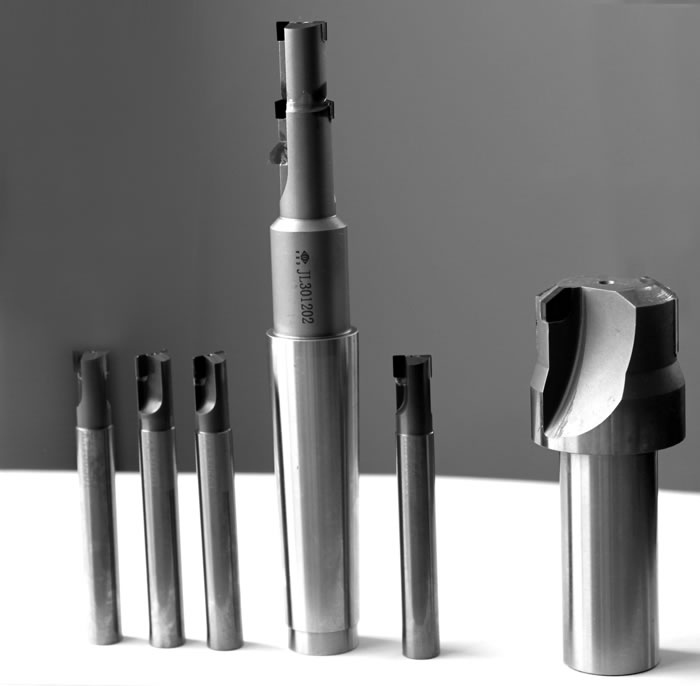

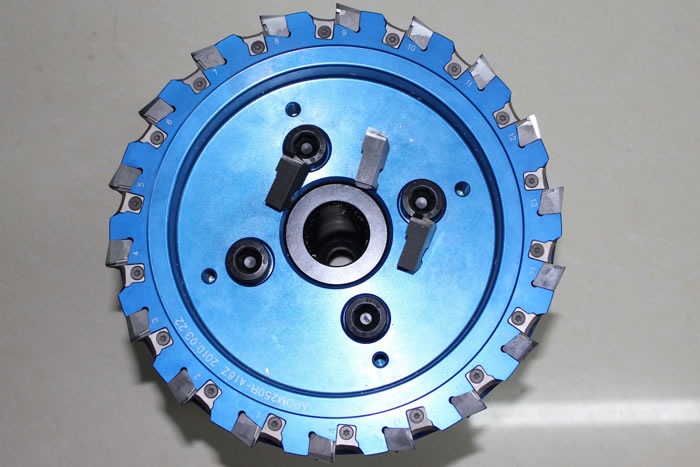

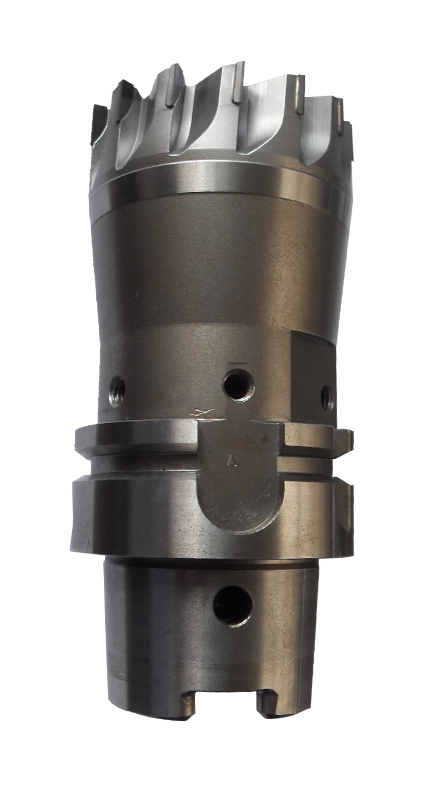

PCD Milling Tool

PCD Milling Tool

Description
PCD blanks feature high hardness, high abrasive resistance, high thermal conductivity and strong toughness. The PCD milling tool has advantages over the average tungsten carbide milling tool.

Features
1. The PCD milling tool features high processing precision and high processing efficiency.
2. The PCD milling tool can realize high speed cutting and hard material cutting.
3. With the features of high abrasive resistance and thermal conductivity, PCD milling tool has a long service life. Its service life is 10 to 20 times that of a tungsten carbide milling tool.

Application

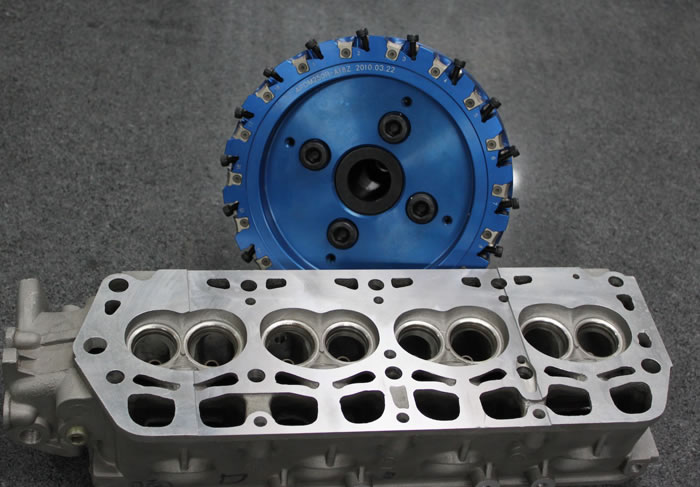

The PCD milling tool is used to process work pieces of various materials, including copper, aluminum, copper alloy, aluminum alloy and composite material. It can be used to process cast aluminum alloy engine case.

Technical Specifications
Dimension (mm)
ΦD L L1 Er
4 100 55 120
6 100 55 120
8 100 55 120
10 100 55 120
12 120 55 120
14 150 55 120

Material
The tool bit of the PCD milling tools uses PCD blanks manufactured by world famous companies including Element Six (DeBeers, E6), DI (GE), ILJIN, SMITH, SUMITOMO and TOMEI. The body part uses high quality tungsten carbide and tool steel.
