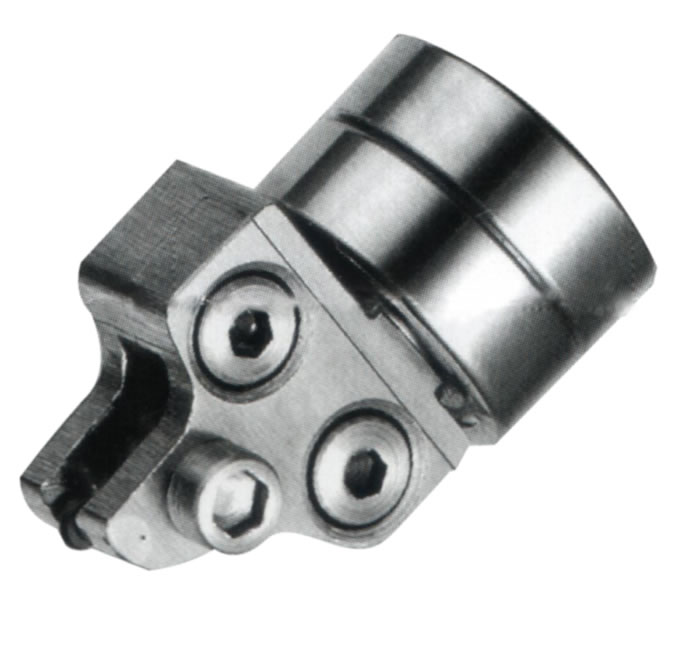

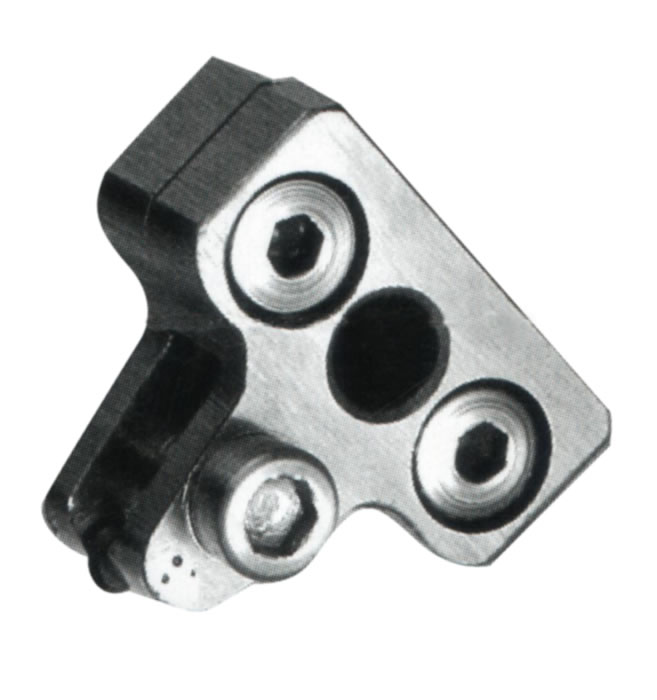

Integrated Diamond Scribing Wheel and Holder

Features
1. The integration of the scribing wheel and holder can avoid their fit tolerance and the friction between them. The design can guarantee the simultaneous mechanical motion of the scribing wheel and holder.
2. The integrated diamond scribing wheel and holder can be used to cut LCD and substrate glass with the life service of 300,000 to 700,000 meters. Its service life is ten to twenty times that of the average diamond scribing wheel.
3. The integrated diamond scribing wheel and holder have flawless cutting quality.
4. The integrated diamond scribing wheel and holder are of various specifications. We can manufacture the product according to your needs.

Technical Specifications
Description Specification Applications
OD(mm) T(mm) V(°) Teeth(mm) Depth of Teeth(mm)
Nikken Integrated Diamond Scribing Wheel and Holder 2.00 0.65 60-163 3-360 0.0015--0.015 TFT-LCD, STN-LCD, LCD
2.50
3.00

Material
The integrated diamond scribing wheel and holder use high quality PCD material made by Element Six and Sumitomo and SUS430 stainless steel.

Packaging
Our integrated diamond scribing wheel and holder are packaged in a plastic case.
