High Penetration Diamond Scribing Wheel

Description

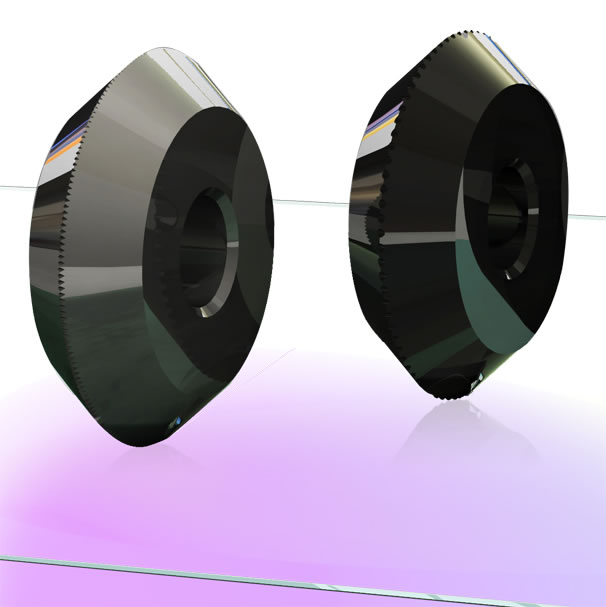

The high penetration diamond scribing wheel uses high quality PCD material of Element Six and Sumitomo. With unique high precision micromachining technology, we make denticles with regular depth and width in the cutting edge of the wheels, to increase or control the cutting depth of the glass.

Features
1. The denticles are distributed regularly and equally.
2. The high penetration diamond scribing wheel has a sharp cutting edge and precise cutting angle. The diamond scribing wheel can cut glasses with vertical and smooth sections and it will not cause chips of glass during cutting process.
3. Compared with the average diamond scribing wheel, the high penetration diamond scribing wheel can guarantee vertical cutting sections and deeper cutting cracks. It can control the cutting depth according to manufacturing need. The cutting depth can reach 50 to 100 percent the depth of the glass.
4. The high penetration diamond scribing wheel causes no fragmentation.
5. The high penetration diamond scribing wheel has long service life.
6. Our high penetration diamond scribing wheel is offered at low price.
7. The diamond scribing wheel can improve production efficiency, reduce waste and lessen production processes.

Application

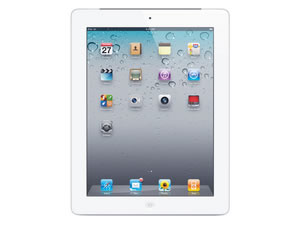

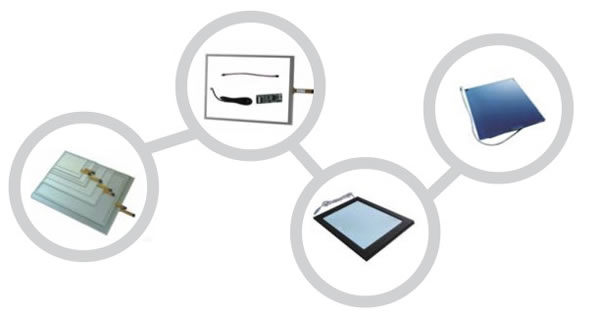

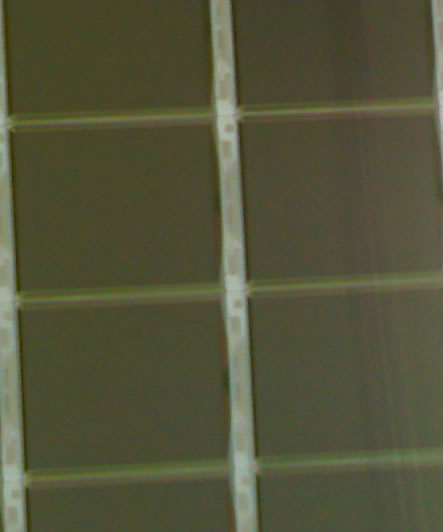

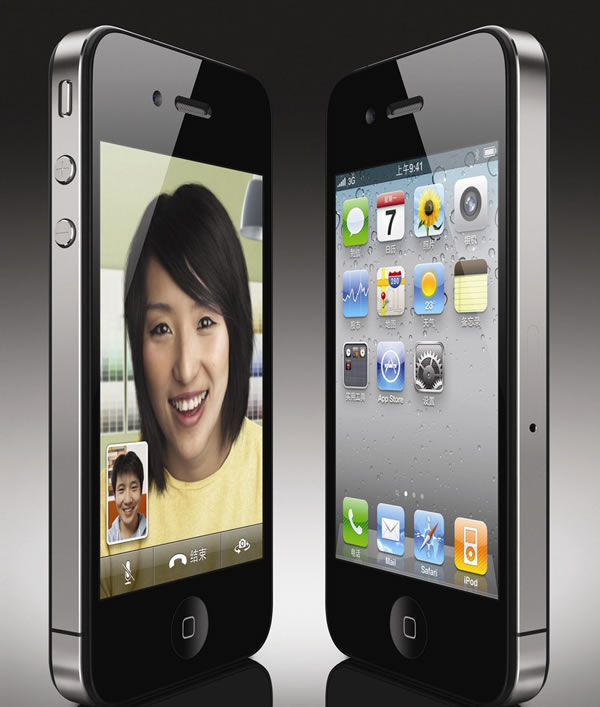

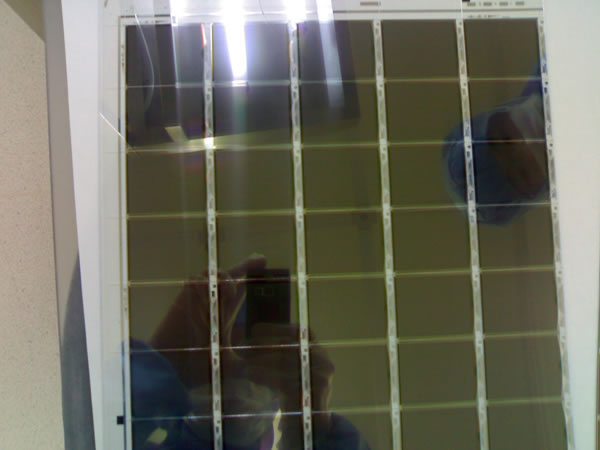

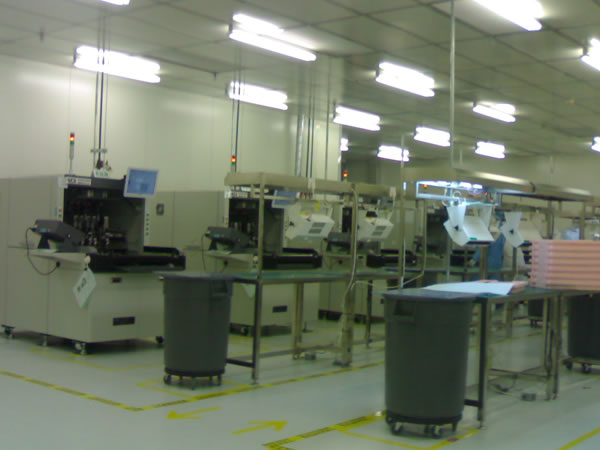

High penetration diamond scribing wheel is used in high end LCD production lines, LCD panels, substrate glass, touch screens and sheet glass for cars.

Technical Specifications
Description Specification Applications
OD (mm) ID (mm) T (mm) Ө (°) Teeth (mm) Deep of Teeth(mm)
High Penetration Diamond Scribing Wheel 1.20 0.50 0.40 80-140 100--230 0.005--0.015 AM-OLED,TFT-LCD, CSTN-LCD,
1.80 0.80 0.65 STN-LCD, LCD Displayer
2.00 0.80 0.65 LCD touch panel, auto,
2.50 0.80 0.65 medical and optical glass
3.00 0.80 0.65 3-540 0.001--0.004
3.20 1.20 1.00
4.00 1.30 1.00

Material
High penetration diamond scribing wheel uses high quality PCD made by Element Six and Sumitomo.

Packaging
Our high penetration diamond scribing wheel is packaged in a plastic case.
